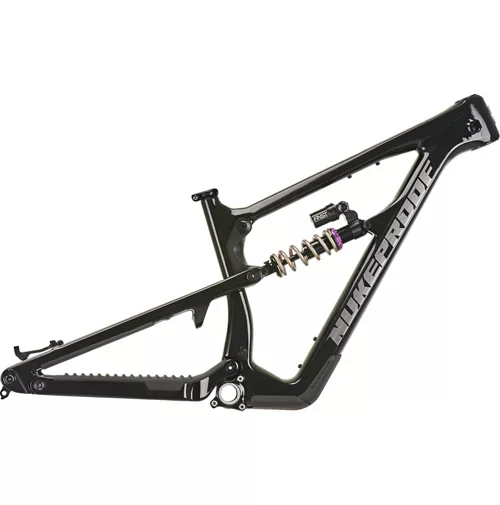

Nukeproof Mega 297 Carbon MTB Frame (Fast Shock)

Nukeproof Mega 297 Carbon Mountain Bike Frame – Fast

The Mega 297 Carbon features an ultra-strong monocoque carbon fibre construction equipped with a Fast Suspension Fenix EVO Enduro rear shock. This full-suspension enduro race frame offers the best of both modern wheel sizes for an outstanding balance of agility, control and efficiency with plush and responsive coil suspension performance.

Ideal for speeding across unpredictable terrain, loose and wet conditions and steep technical climbs and descents, the Mega frame is designed with enduro-optimised race-ready geometry with improved suspension kinematics and internally piped cable routing, making it ideal for handling the demands of enduro racing while also providing a clean, sleek and stylish finish.

The Nukeproof Mega has been Nukeproof’s best-selling model for over 12-years. The Mega has been racking up awards on enduro stages and in the press around the world. With four Enduro World Series (EWS) titles to its name, the Nukeproof Mega has become an icon synonymous with enduro racing.

Since 2009, the Nukeproof Mega has been in constant development to meet the demands of Nukeproof riders and customers alike. As a result, the Mega Carbon V4 frame is available for 27.5”, 29” or new Mixed (Front 29”/Rear 27.5” wheel sizes) wheel setups, with each frame design tailored around each wheel size.

Full Suspension Carbon Fibre Enduro Race Frame

Engineered for optimised frame weight, strength and stiffness, the Mega Carbon frame features a T700/800 UD woven carbon fibre frameset (Front and rear Triangle). The carbon swingarms help reduce the unsprung weight at the rear of the bike – this helps improve suspension performance. All forged parts are made from 6061-T6 aluminium.

After winning four Enduro World Series Titles in three years, the V4 design is an evolution of Nukeproof’s ultimate enduro bike. At the heart of the frame is the brand’s revised suspension Kinematic, designed to be more subtle off the top, whilst remaining progressive and predictable. Anti-Squat is used to create an efficient pedalling bike that can be thrashed through technical terrain. The useable SAG range is also widened to allow riders to tune the suspension to the trails.

Key Features:

• All-new UD Carbon chassis
• Improved suspension kinematics
• Tube-In-Tube design for easy cable installation
• All-new geometry
• Optimised sizing/fit – Small to Large
• SRAM UDH
• Room for a 750ml water bottle inside the main front triangle

The updated Mega frame geometry features a dynamic saddle offset for balanced seated rider weight distribution on each frame size. This dynamic saddle offset means that each frame size has a bespoke seat angle. In addition, the actual seat tube is shorter overall and offers a deeper maximum insert depth that allows a longer dropper post if required.

Fast Suspension Fenix EVO Enduro Coil Rear Shock

The Fenix was released in January 2019 and immediately proved its worth and performance by reaching the Enduro World Series podiums. The Fenix EVO stemmed from the idea of having a shock as efficient as a downhill shock with an integrated climb mode that stays independent from the other adjustments.

Fast Suspension has kept all the strengths of the Fenix with the VDP piston that gives incomparable comfort and track feedback. The adjustable low-speed, medium speed compression and the dedicated high-speed piston.

Fast focused their attention on the design of the EVO head for compatibility with more frame designs. And they also thought about making your life easier if you want to change your shock stroke without needing to open the shock thanks to the new spring retainer design.

Click here for recommended base settings

Fast Suspension Fenix EVO Rear Shock Spring “Weights”

• 425lbs – Small
• 450lbs – Medium
• 475lbs – Large
• 500lbs – X Large
• 525lbs – XX Large

Features:

• Material: Nukeproof Mega V4 297 Carbon, 165mm Travel, ultra-strong monocoque UD Carbon Fibre
• Use: Enduro, All-Mountain, Trail
• Shock: Fast Suspension Fenix EVO Enduro Coil, Integrated Climb Switch, Alloy 7075 T6 made and anodized with a PTFE impregnation to reduce friction, 3 independent compression circuits LS – MS – HS = perfect ground flattening
• Fork Travel: 170mm
• Axle to Crown: 582mm
• Fork Offset: 42mm
• Rear Travel: 165mm
• Wheels Size: Front 29″/Rear 27.5″
• Max Tyre Size: 2.6″
• Recommended Shock Sag (Measured seated): 30%
• Shock Size: 230×62.5mm
• Shock Hardware F: 25x8mm
• Shock Hardware R: 30x8mm
• Headtube: 44-56mm Tapered Semi-Integrated
• Headset: ZS44-28.6 – T2 / ZS56/40 – B8
• Bearings Required: 4x F6802 LLU MAX, 4x 6902 LLU MAX, 2x F6902 LLU MAX-EA
• Seatpost: 31.6mm (Internal Routing for Dropper Seatpost)
• Seat Clamp: 36.4mm
• Bottom Bracket: Threaded 73mm BSA
• Rear Hub: Boost 148x12mm
• Rear Axle: SRAM UDH Maxle Stealth M12x1.0 180mm (Thread Length 13mm)
• Chain Guide: ISCG05
• Brake Mount: 180mm Direct Post
• Protection: 3D Contoured Rubber Frame Protection for DT/SS/CS
• Cable Routing: Internally piped cable routing
• ISCG05 mount
• Enduro bearings
• Weight: 3.82Kgs/8.4lbs (Medium option)

Fast Suspension Fenix EVO Enduro Rear Shock Benefits:

• Custom-tuned for Mega/Giga
• 100% CNC
• Integrated Climb Switch
• Alloy 7075 T6 made and anodized with a PTFE impregnation to reduce friction
• Monobloc Shaft + eyelet = stiffer and stronger
• A membrane is used to reduce friction and heat
• Viton Shaft seals for better heat resistance
• VDP piston = better traction control
• 3 independent compression circuits LS – MS – HS = perfect ground flattening
• Shock Weight without spring is 500g (230x65mm)
