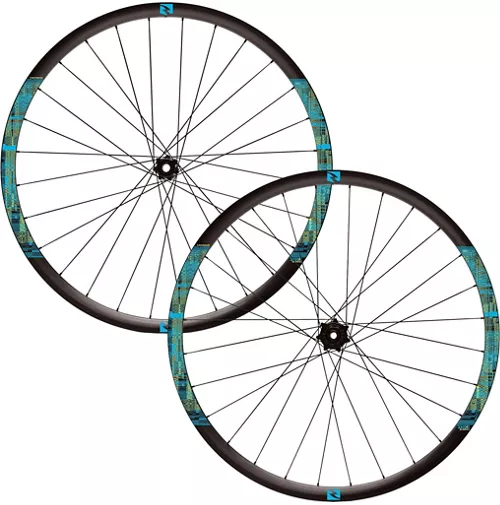

Reynolds® Reynolds TR 367 Carbon E-MTB Wheelset

Reynolds TR 367 Carbon E-MTB Wheelset

Featuring a carbon fibre rim construction, this electric mountain bike (E-MTB) wheelset gives riders a superb balance of stiffness, strength and an overall lower weight on their ride. Thanks to its asymmetric rim profile, this model also provides a stronger wheel through more even spoke tension. This means that you’ll benefit from fantastic toughness and stability when climbing and when it’s time to descend down the trail, you won’t have to worry about any excess grams holding you back. Coming equipped with high-quality Sapim E-Lite spokes and a Reynolds TRE hub, this wheelset is engineered to handle the increased speeds and torque levels that are associated with electric mountain bike riding.

Carbon E-MTB Wheelset with Reynolds TRE Hubs

The TRE series is designed specifically for the demands of the more refined generation of e-mountain bikes, which allow you to cover steeper terrain in a shorter time, allowing grinders to go further, faster. Since more miles mean greater wear, Reynold’s built its robust TRs rims to an electric bike (e-bike) specific hub using 32 e-bike specific spokes and brass nipples. The result is a lightweight wheel for riders demanding top performance from their new machines.

– Asymmetric rim profile provides a stronger wheel through more even spoke tension

– Built with Sapim E-Lite spokes which use 2.3mm spoke head and durable brass nipples

– Reynolds TRE hub

– 6 pawl, full inline engagement for ultimate drive mechanism durability

– 10 degrees of engagement

– Short steel pawls and reinforced ratchet ring area provide greater durability and strong engagement

– 5 bearing rear hub design (3 bearings in freehub) help to disperse the increased load from e-bike motor

– Chromoly steel axle and freehub body for increased durability

– Reinforced IS-6 disc mount for increased durability

– Cooling fins behind brake mount for heat dissipation

Features:

• Rim Material: Asymmetric Carbon Fibre
• Axle Size: Front: 15x110mm; Rear: 12x157mm
• Use: E-MTB
• Rim Width: Inner: 36mm; Outer: 42mm
• Rim Depth: 26mm
• Freehub Type: Multiple options available to select separately
• Spoke Type: Sapim E-Lite JB
• Spoke Count: Front: 32; Rear: 32
• Spoke Pattern: Front: 3x; Rear: 3x
• Hub: Front: Reynolds Hub TRe; Rear: Reynolds Hub TRe
• Nipple: External Brass
• Engagement: 10°
• Pawl: 6
• Brake Compatibility: 6-bolt disc brake
• Decal: Blue/Yellow vinyl
• Included: 2x45mm Tubeless Valve Stems, End Caps (15mm FT/12x142mm RR installed), 30mm Tubeless Tape installed and Reynolds Owner’s Manual
• Wheel Size: 27.5″
• Single or Pair: Pair
• Weight: 2150g (pair)

Manufacturer’s Part Numbers:

• R-WC-79996 Black 27.5″ Shimano Micro Spline
• R-WC-78927 Black 27.5″ SRAM XD
